Maximal and Minimal Work

Maximal Work

So far we discussed reversible processes. What happens for irreversible ones?

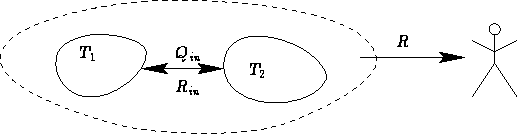

Let us discuss an insulated system (adiabatic process).
\begin{figure*}
 \InputIfFileExists{unequilibr.pstex_t}{}{}\end{figure*}
We know the volume of the system in the final state $V_{\text{fin}}$. What is the maximal work R against the surroundings?

Since there is no heat exchange,
 \begin{displaymath}
 R = E_{\text{start}}-E_{\text{fin}}\end{displaymath} (1)
$E_{\text{start}}$ is given. We want $E_{\text{fin}}$ to be as small as possible (we are greedy[*]!). Since in final state the system is in equilibrium, $E_{\text{fin}}=E_{\text{fin}}(S_{\text{fin}})$. Differentiate (1):

\begin{displaymath}
\left(\frac{\partial R}{\partial S_{\text{fin}}}\right)_V =
...
 ...al E_{\text{fin}}}{\partial S_{\text{fin}}}\right)_V = -T
 < 0 \end{displaymath}

R is a decreasing function of $S_{\text{fin}}$. The lower is $S_{\text{fin}}$, the better! But S cannot decrease, it can only increase!

Conclusion:
R in a closed system is maximal for reversible processes, when $S=\mathit{const}$
Machines should produce as less entropy as possible!

System and Environment

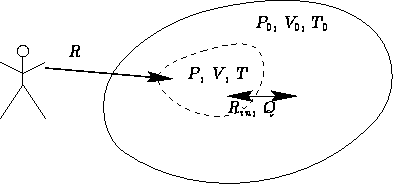

Consider a not insulated body at temperature T and pressure P surrounded by environment with temperature T0 and pressure P0:
\begin{figure*}
 \InputIfFileExists{environ.pstex_t}{}{}\end{figure*}
What is the minimal work to change the state of the body $R_{\min}$?

What is the change of energy $\Delta E$ of the body?

We obtained:

\begin{displaymath}
\Delta E = R + P_0\,\Delta V_0 - T_0\,\Delta S_0\end{displaymath}

Result:
 \begin{displaymath}
 \begin{aligned}
 R \ge R_{\min} &= \Delta E - T_0\,\Delta S + P_0\, \Delta V =\  &\Delta( E - T_0 S + P_0 V)
 \end{aligned}\end{displaymath} (2)
Particular cases: Thermodynamic potentials describe the minimal work to produce the given state at certain external conditions.

Thermodynamic Potentials and Irreversible Processes

Suppose now R=0. We obtained:

\begin{displaymath}
\Delta( E - T_0 S + P_0 V)\le 0\end{displaymath}

This thing always decreases!

Probability of a Fluctuation

Once again, a body in an environment (microcanonical ensemble):
\begin{figure*}
 \InputIfFileExists{environ.pstex_t}{}{}\end{figure*}
Let us consider it as a fluctuation: some macroscopic variable deviated from the mean value. Then $R_{\min}$ is the minimal work to create the fluctuation.

Probability for the fluctuation is

\begin{displaymath}
\Prob\sim\exp(\Delta S/k)\end{displaymath}

In equilibrium

\begin{displaymath}
S_{\text{eq}}=S_{\text{eq}}(E_{\text{tot}}), \quad
 E_{\text{tot}} = E+ E_0\end{displaymath}

When the system equilibrates, its total entropy increases, so

\begin{displaymath}
S_{\text{start}}<S_{\text{eq}}(E_{\text{tot}})\end{displaymath}

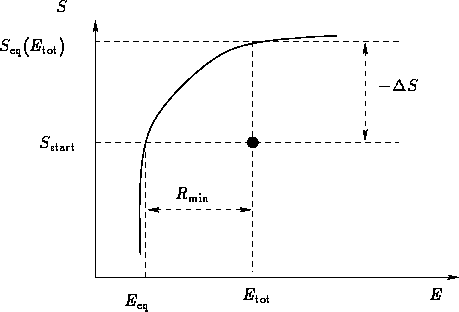

Let $E_{\text{eq}}$ be the energy for which

\begin{displaymath}
S_{\text{eq}}(E_{\text{eq}}) = S_{\text{start}}\end{displaymath}


\begin{figure*}
 \InputIfFileExists{ST.pstex_t}{}{}\end{figure*}
Then:

\begin{displaymath}
R_{\min}= E_{\text{tot}}-E_{\text{eq}},\quad \Delta S = S_{\text{eq}}(E_{\text{tot}}) - S_{\text{start}}\end{displaymath}

Therefore

\begin{displaymath}
\Delta S = - \frac{dS_{\text{eq}}}{dE_{\text{tot}}}R_{\min} = -\frac{R_{\min}}{T_0}\end{displaymath}

We obtained:
 \begin{displaymath}
 \Prob\sim\exp(-R_{\min}/kT)\end{displaymath} (3)
Difference between (3) and Gibbs formulae: here we discuss the probability of a macroscopic state!
